; "GSM RELAY 1 - SCHUKO(1DIn or 1therm, 1DOut, pow. 230V)")
Discontinued product, for archive purposes only.
Remote Control of Electrical Appliances via GSM Network
Desription
The GSM-R1-ZAS-EN (GSM RELAY for short) controls electrical appliances by switching on or off the power 230 VAC / 50 Hz, 10 A max. in the power socket. The control is made by SMS messages sent to the device, that can send back SMS confirming, that the command was executed.

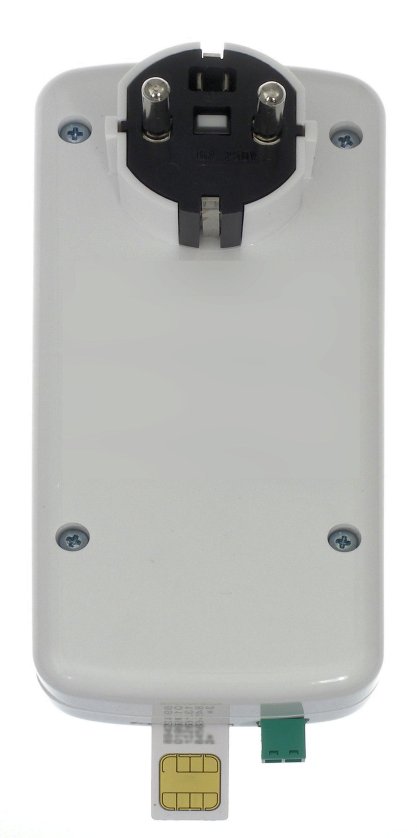

The SIM card of any operator is inserted into the device and upon the first switching-on the device stores the basic settings in the card that can be later modified by user.
GSM RELAY has also input for the sensor to measure and control the temperature.
Note: Temperature sensor is not part of delivery and has to be ordered separately. Recommeded type is GSM-C-T2
Technical specifications
| Power supply |
230 VAC (+/- 10 %) |
|
Output socket |
230 VAC (+/- 10 %); max. 10 A *) |
| Internal Power consumption |
1.5 W to 3 W |
| Operating temperature |
-20 to +40 °C |
| *) | For loads higher then 10 A or inductive load (e.g. motor) or capacity load use another type GSM-R3-DINB-EN with contactor |
Usage
- Home, Cotages - remote control of heating system
- Events, Alarms - door, windows

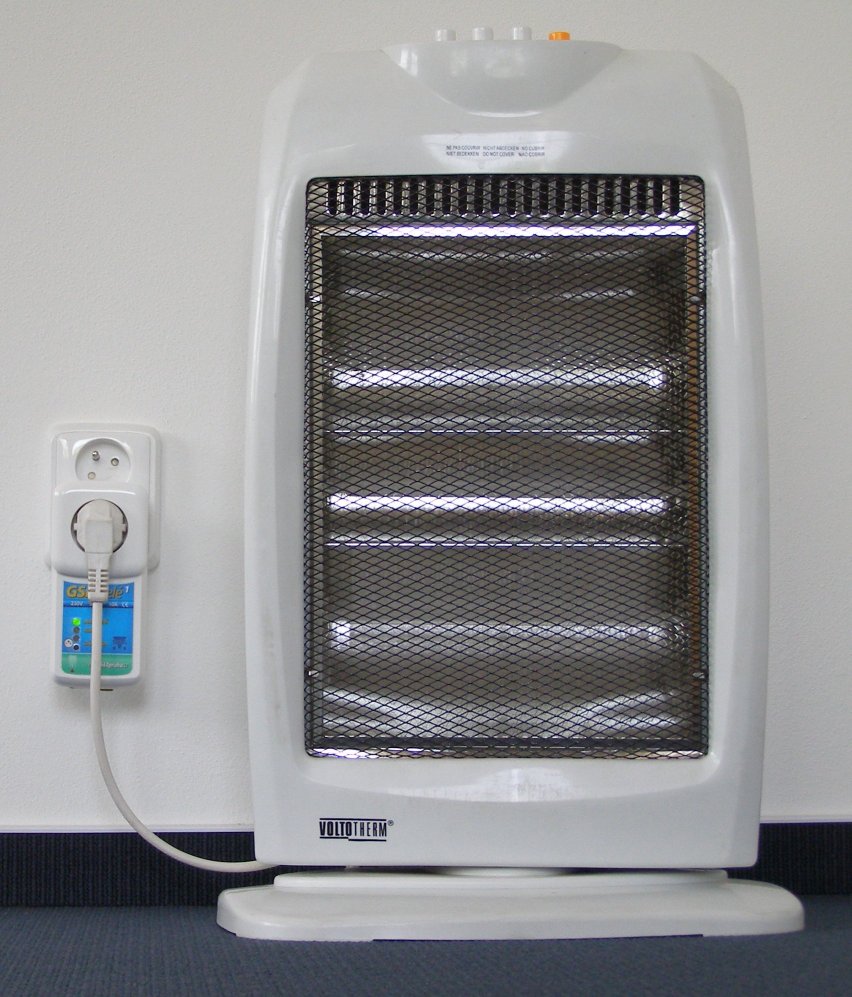

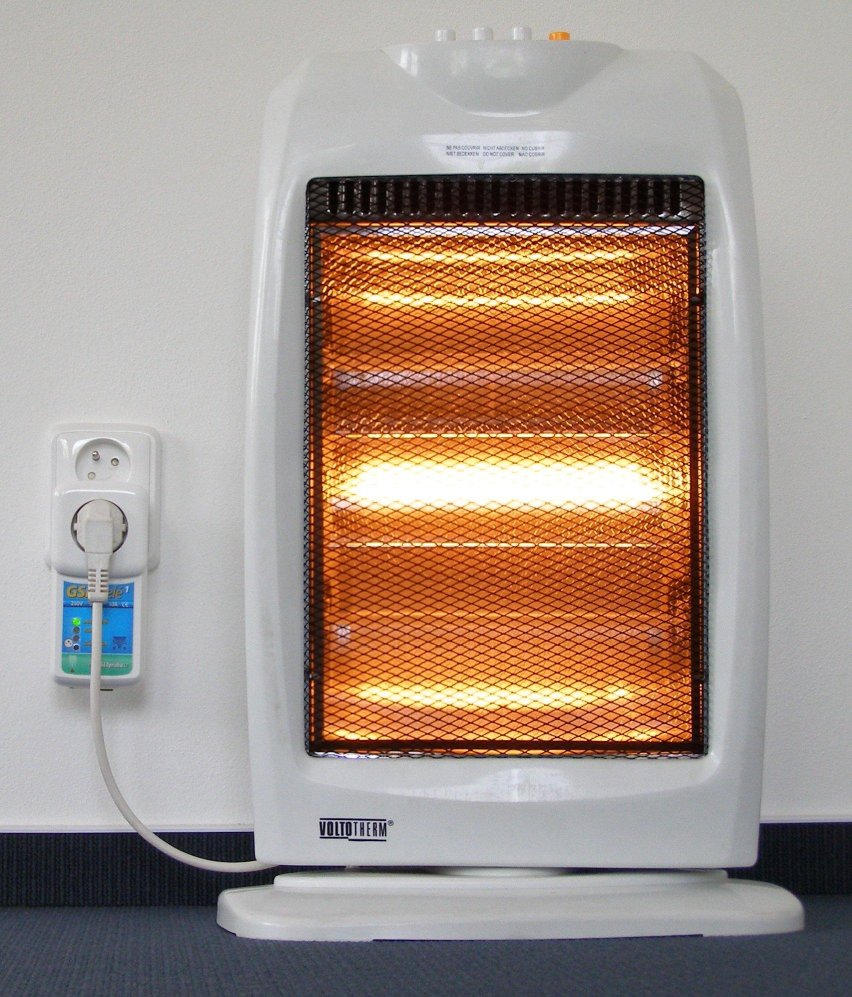

- Automatic Room Temperature Control - with connected oil radiator
- Remote Reset of - computers, servers, control systems
Advantages
- Simple instalation - just plug in the socket
- Easy control - via SMS from your mobile phone
- Plug&Play device - no setting necessary for basic functions
Remote control from your mobile phone
Package content
- 1pc GSM-R1-ZAS-EN
- 1pc konector ETB4702G00
- 1pc printed documentation
Recommended accessories
- Temperature sensor GSM-C-T2, GSM-C-T2.5 or GSM-C-T2.10
